SSL/TLS Connection to the MQTT Broker

How to I connect a "thing" to the Assetwolf IoT portal using Secure MQTT?

Assetwolf can accept a secure SSL/TLS connection over MQTT from remote devices.

To illustrate how this is set up, here is a simple method in which we use the MQTT.fx program to imitate the device.

1. Enter the user credentials

Your device will need to connect on port 8883 (instead of 1883 for insecure connections).

You will need to give it your credentials as detailed in the Global Connection Details page in your portal's Setup area. For example like this:

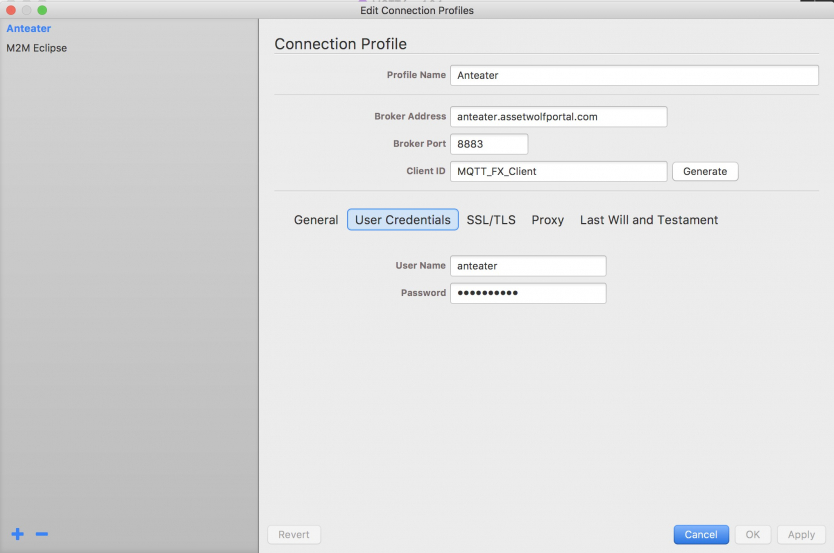

Secure MQTT SSL TLS setting user credentials

2. Download the CA certificate file

Go into your portal's Setup area and download the tribal_ca.crt certificate file. The standard Assetwolf secure connection uses this certificate.

Save this file locally, in such a way that you are able to put a copy of this on each of your devices.

(There are more sophisticated security arrangements possible, but not enabled by default. Please contact our team for info.)

3. Enter SSL/TLS details

In your device's set-up screen, make it use the CA certificate file when it connects. Here is how it looks in MQTT.fx:

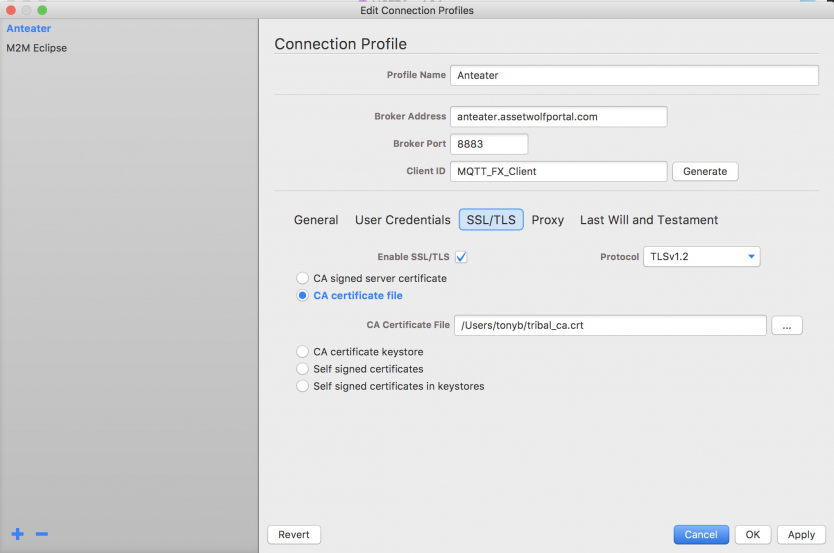

Secure MQTT SSL TLS setting security method

After doing this, click Apply to save the settings, and then Cancel to leave the screen.

4. Test the connection

Now test the connection, in this example by pressing the Connect. You should see a green dot with a padlock showing the connection is secure.

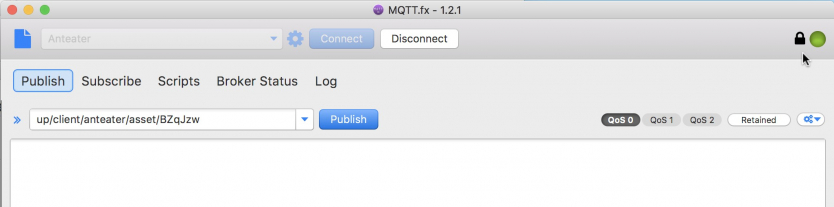

Secure MQTT SSL TLS making a connection

That should be enough to make a secure connection. You should then be ready to set your Publish and Subscribe topics in the usual way, and then send and receive data securely.
